Description

SalvationDATA is widely known as the famous data recovery and digital forensics solution provider in the world. In 2013, SalvationDATA established its wholly owned subsidiary Sichuan Masterpiece Technology LLC, which is a leading manufacturer for computer forensics laboratory equipment. With the ambition to provide intelligent software with fantastic hardware, SalvationDATA focuses on providing reliable and unique digital forensics laboratory solution in furniture design, proprietary work space, acoustics and electricity control, as well as security. All the equipment are compatible with SalvationDATA software including DRS, VIP, SPF etc.

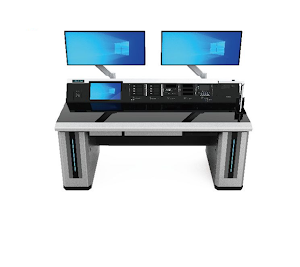

Intelligent Forensic Workstation – Navigator LH-DP990

All-in-one new generation forensic workstation developed by SalvationDATA. The product features in the specialized forensic tools with comprehensive integration, and the ergonomic design is adopted for the product to enable the forensic investigator to work efficiently under the immersive office environment.

The Navigator takes a high-performance PC platform as the carrier, carrying multiple forensic application modules including computer forensics, video forensics, and mobile forensics. It can carry out the forensic analysis for mobile phones, hard drives, and other common storage media according to the standard forensic workflow.

Hardware Configuration:

• AHCI SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
• SCU SATA: SATA3 (6Gbps); RAID 0, 1, 5, 10
• SATA: 10x SATA3 (6Gbps) ports
• LAN: 2x RJ45 Gigabit Ethernet LAN ports
• USB: USB 3.0 ×2, USB 2.0× 6
• Audio: 7.1 HD Audio with optical S/PDIF
• PCI-Express: 3 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 1 PCI-E 2.0 x4 (in x8)
• Write-Blocker Modules: SATA2.5’/3.5’ write-protected, IDE2.5’/3.5’ write-protected, SAS2.5’/3.5’ write-protected, USB3.0/2.0/1.1 write-protected, SD/MMC/CF/CFII/MS/MS Duo/TF/M2 write-protected
• RAID Chassis(Optional): One (1) 2.5’’ Bay with 2 Removable Trays, One (1) 3.5” Bay with 3 Removable Trays
• RAID Interface(Optional): LSI SAS 9207-8e Adapter implanted, Supports 8 external 6Gb/s SAS+SATA ports, Two, x4 external mini-SAS connectors (SFF8088), Supports up to 1024 SAS or SATA end devices
• CD Drive(Optional): 16X SATA Blu-ray Burner
• Special Module: 1 damage storage media defect control module, specially designed to diagnostic and recover data from including but not limited to defective hard drives with bad sectors or firmware issues.
• Special Decoration: Unique LED Light strips with blue color embedded into the workstation.
• Charging Module: 1 mobile phone wireless charging module.
