Description

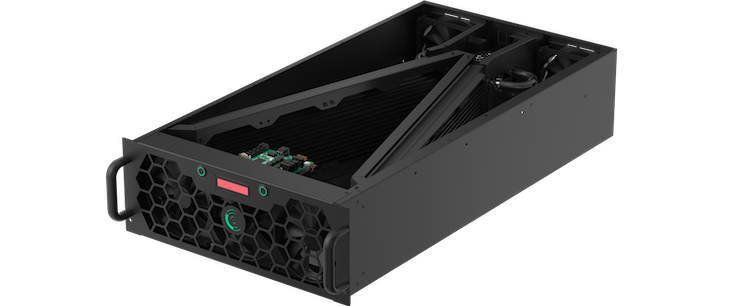

COMINO DRYCOOLER – 4U rack-mountable or free standing ambient liquid cooling system. It contains 5x 140mm Noctua industrial fans and 2x copper radiators, providing 4000W of cooling with a 25°C ambient delta. Based on Grando 4U enclosure this module allows to dissipate 4kW water heat into the air. It is ready to be connected to a Grando or other liquid-cooled server.

Features:

• 4U-Compatible or Stand-alone
• 4KW Cooling Capacity
• Automatic control & Monitoring
• 2X Air Sensors
• 2X Coolant Sensors
• Adjusted Fans Rotation Speed
• Remotely Updated Software

Technical Specifications:

• Dimensions: 482 (440) mm х 175mm (4U) х 942 (858) mm
• Consumption: 110w
• Pipe Connection Spec: G1/4” threads on back panel Staubli Quick Disconnect Couplings with internal diameter of 6mm, stainless flat-face zero-spill
• Power input: 110-230VAC
• Cooling capacity: 5x 140mm Noctua NF-A14 Industrial 3000rpm PWM fans, two levels (9V, 12V)
• Operating temperature: Ambient Air 10-35°C (20°C – recommended), Coolant temperature 10-55°C
• Radiators: 2x 560x140x54mm Copper radiators, V-shaped flow-optimized positioning
• Pumps: Dual Laing DDC 18W PWM pumps
• Reservoir: Borr-silicate glass reservoir with flow optimized POM pump top
• Sensors: 2 air sensors (in-out), 2 coolant sensors (in-out).
